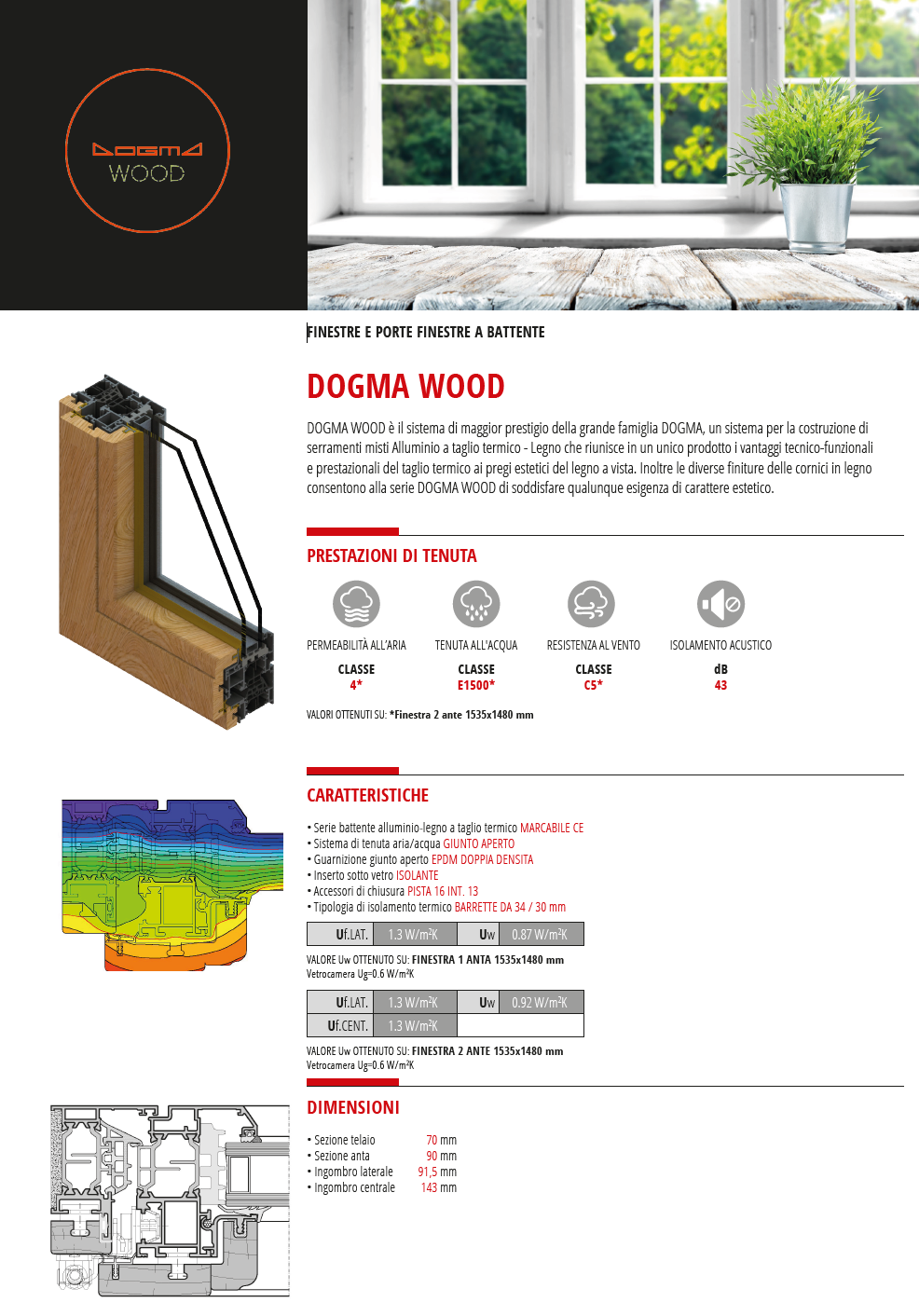

CASEMENT WINDOWS AND CASEMENT PATIO DOORS
DOGMA WOOD
VERSATILITY AND LIGHTNESS
DOGMA WOOD is the most prestigious system of the large DOGMA family, a system for the construction of mixed Aluminium – Wood thermal break windows and doors that combines in a single product the technical-functional advantages and performance of thermal break with the aesthetic advantages of visible wood. Furthermore, the different finishes of the wooden frames allow the DOGMA WOOD series to satisfy any aesthetic requirement.
sealing performance
AIR PERMEABILITY
Class
4*
VALUE OBTAINED ON:
*DOUBLE-LEAF WINDOW 1535X1480 mm
WATER TIGHTNESS
Class
E1500*
WIND RESISTANCE
Class
C5*
SOUND PROOFING
DB
43
Caratteristiche
- Thermal break Lift & slide system
- Air/water sealing system
- Internal rebate gasket
- Under glass insert
- Closing accessories
- Thermal insulation main type
elegible for ce marking
open joint
double density epdm
insulating
16 int. 9 european chamber and track
34 / 30 MM bars

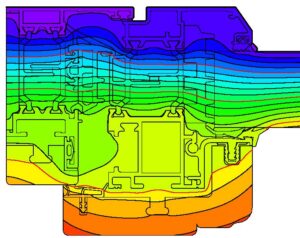

| Uf.LAT | 1.3 W/m²K | Ug | 0.6 W/m²K | Uw | 0.87 W/m²K |
| UW VALUE OBTAINED ON 1-SASH WINDOW 1535X1480 mm | |||||
| Uf.LAT | 1.3 W/m²K | Ug | 0.6 W/m²K | Uw | 0.92 W/m²K |
| Uf.CENT. | 1.3 W/m²K | ||||
| UW VALUE OBTAINED ON 2-PANE WINDOW 1535X1480 mm | |||||
Dimensions
- Frame cross-section
- Sash cross-sections
- Overall lateral dimensions
- Overall central dimensions
70 mm
90 mm
91,5 mm
143 mm
